500mA Uhf Rfid Card Reader Module For Short Distance And Low Lost

Name: 500mA Uhf Rfid Card Reader Module For Short Distance And Low Lost
Brand: Sunshine
Price: 1 USD

Brand Name : Sunshine

Model Number : M2100-V3

Certification : CE-ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : carton

working frequency : 840～960MHz

Support area : China, Japan, Europe, the United States, South Korea, Taiwan ……

Maximum working current : 500mA

Standby current : 30mA

Dormant current : 100uA

Maximum read distance of label : ＞2meters (2dBi ceramic antenna )

Contact Now

uhf rfid module for short distance and low lost

Specification

Air interface protocol : EPCglobal UHF Class 1 Gen 2/ISO 18000-6C
Maximum read distance of label : ＞2meters (2dBi ceramic antenna )
Antenna interface : MMCX

Main performance parameters

Category	Specification parameter	Remarks
Name	M2100_V3
Air interface protocol	EPCglobal UHF Class 1 Gen 2/ISO 18000-6C
working frequency	840～960MHz
Support area	China, Japan, Europe, the United States, South Korea, Taiwan ……

working voltage	DC5V
Maximum working current	500mA	In the case of 25dBm output power
Standby current	30mA
Dormant current	100uA
RF port maximum output power	25dBm	It Can be adjusted directly from 5dBm to 25dBm
Maximum read distance of label	＞2meters (2dBi ceramic antenna )	The actual distance is related to the label and environment
working temperature	-20℃～+70℃
Working humidity	≤95%(+25℃)
Storage temperature	0℃～+90℃
Maximum receiving sensitivity	-60dBm
Antenna interface impedance	50Ω

Serial communication parameters	Baud rate adjustable (default 115200bps), parity bit: No, data bit: 8 bit, stop bit: 1 bit

Antenna interface	MMCX	Gold plated brass
PCB material	FR4
PCB surface treatment	Gold-plated
PCB color	Blue + Black
Shield material	Yang paktong
Heat dissipation mode	Natural cooling of air

2:M2100_V3 Interface definition and shape size

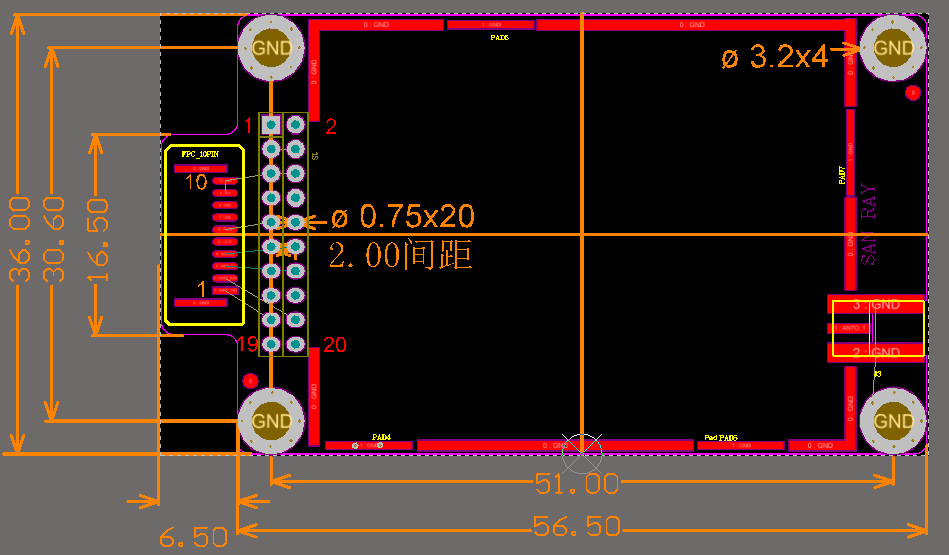

Figure 1 : M2100_V3 interface order and shape size (unit: MM)

Note: the thickness of the module is 4.8mm, the height of the bottom pin is 6.0mm, the total thickness is 10.8mm.
500mA Uhf Rfid Card Reader Module For Short Distance And Low Lost

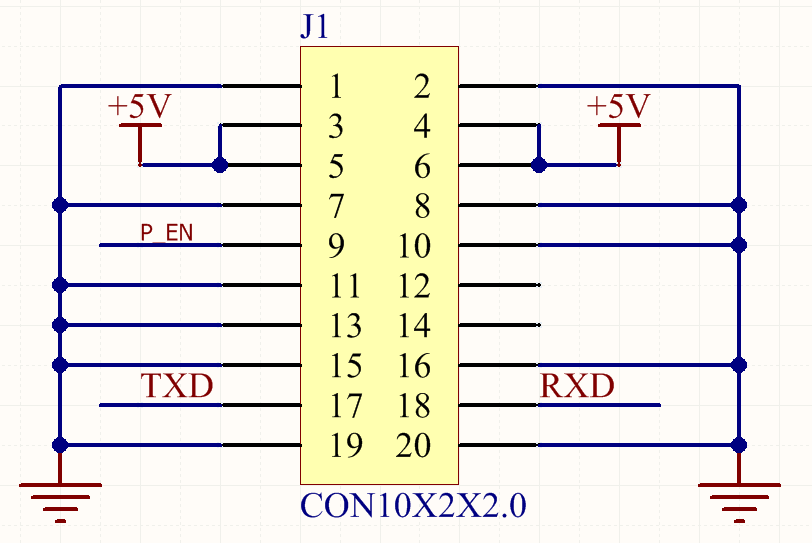

Figure 2: M2100_V3 Interface circuit diagram

The default interface adopts 2 20 pin dual row spacing, defined as follows:

20 pipe feet	Name	Description
1	GND	Power negative input
2	GND	Power negative input
3	+5V	5V power positive input
4	+5V	5V power positive input
5	+5V	5V power positive input
6	+5V	5V power positive input
7	GND	land
8	GND	land
9	P-EN	Power control terminal (input high level, module running normally, input low level, cut off power)
10	GND	land
11	GND	land
12	DIO	Module programming data interface (internal use)
13	GND	land
14	CLK	Modular programming clock interface (internal use)
15	GND	land
16	GND	land
17	UART TX	Serial interface transmission, TTL level, low level of 0V, high level of 3.3V
18	UART RX	Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V
19	GND	land
20	GND	land

The FPC_10PIN connector position is reserved for 1.0MM, up type and defined as follows :

10 pipe feet	Name	Description	Remarks
1	UART TX	Serial interface transmission, TTL level, low level of 0V, high level of 3.3V
2	UART RX	Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V
3	GPIO3	The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V)	Programmable use
4	GPIO2	The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V)	Programmable use
5	GPIO1	The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V)	Internal use
6	P-EN	Power control terminal (input high level, module running normally, input low level, cut off power)	Low power application
7	GND	Power negative input
8	GND	Power negative input
9	+5V	5V power positive input
10	+5V	5V power positive input

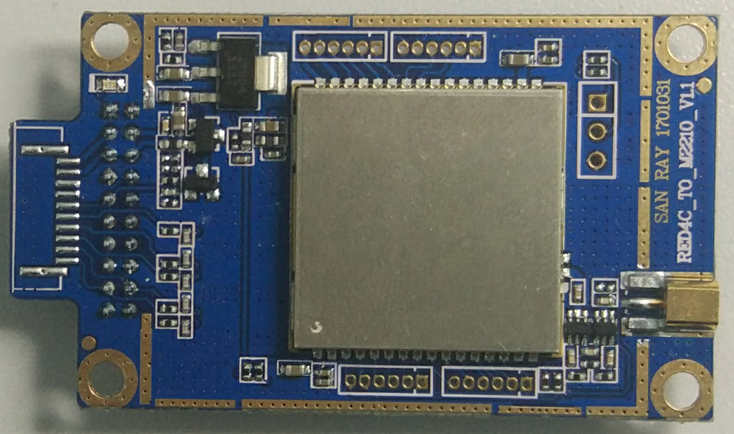

3: M2100_V3 Module physical picture
500mA Uhf Rfid Card Reader Module For Short Distance And Low Lost

Figure 3:M2100_V3 physical map
4,Channel frequency examples
5.1 china frequency

Channel	Frequency	channel	Frequency
1	920.125 MHz	11	922.625 MHz
2	920.375 MHz	12	922.875 MHz
3	920.625 MHz	13	923.125 MHz
4	920.875 MHz	14	923.375 MHz
5	921.125 MHz	15	923.625 MHz
6	921.375 MHz	16	923.875 MHz
7	921.625 MHz	17	924.125 MHz
8	921.875 MHz	18	924.375 MHz
9	922.125 MHz	19	924.625 MHz
10	922.375 MHz	20	924.875 MHz

5.2 Japan frequency

Channel	Frequency	Channel	Frequency
24	920.6 MHz	32	922.2 MHz
25	920.8 MHz	33	922.4 MHz
26	921.0 MHz	34	922.6 MHz
27	921.2 MHz	35	922.8 MHz
28	921.4 MHz	36	923.0 MHz
29	921.6 MHz	37	923.2 MHz
30	921.8 MHz	38	923.4 MHz
31	922.0 MHz

Note: other regional frequencies please refer to the regional regulations
